Nice Design Rfid Access Control System Tripod Turnstile For Entrance With Face Recognition
Tripod Turnstile RS 118 also called:Tripod Barrier,Waist Height Turnstiles,3 Arms Turnstile and so on.Tripd Turnstile full body is made of 1.5-2.0mm 304 stainless steel.Tripod Turnstiles consist of three bars,electric circuit,mechanism,electromagnetic,hydraulic damper,led lamp,etc.Tripod Turnstiles is the most economic pedestrian access control,external third-party systems, such as: Fingerprint,QR Code Reader,IC/ID Card,Face Recognition,Biomeitic,Barcode,etc.Tripod Turnstile is widely used in Subway Station,School,Gym,Bank,Hospital,Supermarket,etc.Waist Height Turnstile RS 118 with standard fire interface,arm can drop down for evacuationg even power is not cut off when fire alarm triggered.Tripod Gates RS 118 is anti-passback,when arm rotates 60 degree,people cannot reverse back.3-arm Turnstiles RS 118 with hydraulic damper,low impact sound and high durability:the 3 arms can rotate in one or two directions,controlled by an access control system or push button at a reception desk.THree Rollers Turnstile RS 118 is highly bright led direction indication lamp,indicate pass station instantly.
Parameter
| Product Name | Tripod Turnstile,Waist Height Turnstile |
| Model | RS 118 |
| Brand | Bloccante |
| Housing material | 304 stainless steel |
| Dimensions(vertical) | 420*330*980mm |
| Dimensions(bridge) | 1200*300*980mm |
| Arm length | 550mm |
| Weight44 | 40Kg |
| Power | DC24V |
| Voltage | AC220V±10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 35 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30°C ~ 60°C |
| Operating humidity | ≤95% no condensation |
Function
1,Malfunction self-check and alarm reminder, ease of maitenance and use
2,Running method can be set through small buttons on the control panel
3,How arm reacts in emergency
4,How arm reacts when power on
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)

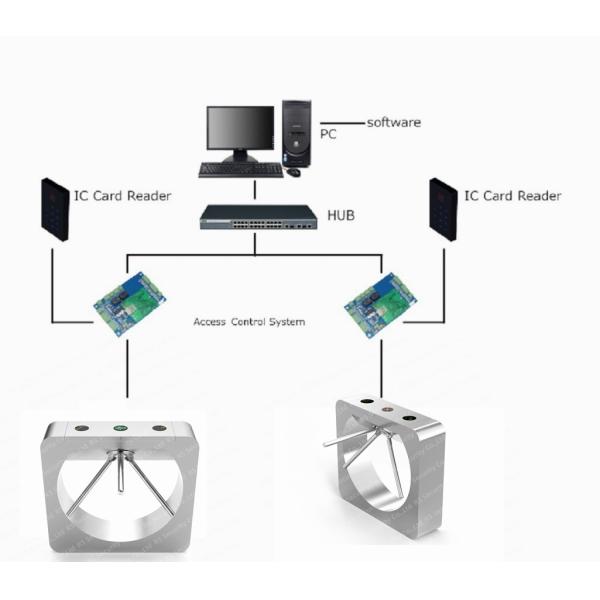

6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7,Unique positioning, self reset, one arm always in the horizontal level
8,LED lamp indicator
9,when open signal is given, arm rotate to a certain degree
10,how arm reacts when people passing
11,one direction or bi-direction flow control
12,work directly with PC for remote control and management
13,Bi-direction Anti reverse rotation
Feature
- Long-life performance, high operation dependability and fast response.
- The whole system runs smoothly, low noise, no mechanical impact.
- Single directional or Bi-directional is selectable.
- Automatic reset function: turnstile arm will lock automatically
- within 5s (can be setting) if passenger delay to entry.
- When power is off, arms will drop down automatically, which is complying with fire safety requirements.
- LED indicator (red × means no entry; green →means entry).
- Easy to install and maintain.
- 3-year warranty support.
