Barcode Nfc Tripod Turnstiles Supermarkets Store Dustproof Anti-climb 3 Arms Door Panel
Parameter
Waist Height Turnstiles RS 618F Also Called(,Tripod Door,Three Rollers Turnstile-arm Turnstiles,Tripod Turnstile )etc.Waist Height Turnstiles RS 618F full body is made of 1.5mm thinckness 304 stainless steel.Three Rollers Gate RS 618F is consist of three bars electromagnetic,electric circuit,mechanism,Three Bars,hydraulic damper,led lamp3-arm Turnstiles RS 618F is suitable for areas with general pedestrian traffic. (e.g.: School,Library,Metro Station,Subway Station,Supermarket,BRT Station.Tripod Turnstile RS 618F is the most economice pedestain access control.has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: Biometric Reader Device,Fingerprint,RFID,Face Recognition,IC/ID Card,ESD).Tripod Tourniquets RS 618F with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Tripod Barriere RS 618F anti-passback,when arm rotates 69 degree,people cannot reverse back.Tripod Barreiras RS 618F with ydraulic damper,low impact sound and high durability.Tripod Torniquete RS 618F the 12 arms can rotate in one or two directions,controlled by an access control system or push button at a reception desk.
Parameter
| Product Name | Tripod Turnstile,Waist Height Turnstile |
| Model | RS 618F |
| Brand | Bloccante |
| Housing material | 304 stainless steel |
| Dimensions(vertical) | 420*330*980mm |
| Dimensions(bridge) | 1200*300*980mm |
| Arm length | 550mm |
| Weight44 | 40Kg |
| Power | DC24V |
| Voltage | AC220V±10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 35 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30°C ~ 60°C |
| Operating humidity | ≤95% no condensation |
Function
1,Malfunction self-check and alarm reminder, ease of maitenance and use
2,Running method can be set through small buttons on the control panel
3,How arm reacts in emergency
4,How arm reacts when power on
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)

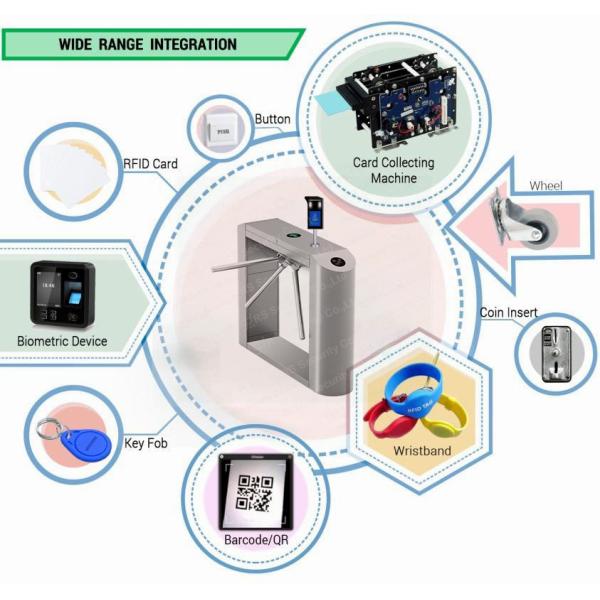

6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7,Unique positioning, self reset, one arm always in the horizontal level
8,LED lamp indicator
9,when open signal is given, arm rotate to a certain degree
10,how arm reacts when people passing
11,one direction or bi-direction flow control
12,work directly with PC for remote control and management
13,Bi-direction Anti reverse rotation
Feature
- Long-life performance, high operation dependability and fast response.
- The whole system runs smoothly, low noise, no mechanical impact.
- Single directional or Bi-directional is selectable.
- Automatic reset function: turnstile arm will lock automatically
- within 5s (can be setting) if passenger delay to entry.
- When power is off, arms will drop down automatically, which is complying with fire safety requirements.
- LED indicator (red × means no entry; green →means entry).
- Easy to install and maintain.
- 3-year warranty support.
|
|
