Coins Toll Tripod Turnstiles Railway Station Buy Waist-high Three Rollers Torniquete Accessory
Parameter
3-arm Turnstiles RS 1018-3A also called:Tripod Turnstile,Waist Height Doors,3 Rollers Barrier and so on.Tripod Tourniquet Turnstiles full body is made of 1.5mm sus316 stainless steel.Tripod Barrieres consist of three arms,electric circuit,mechanism,hydraulic damp,electromagnetic,led lamp,etc.Tripod Barrieres is the most economic pedestrian access control,external third-party systems, such as: Facial Recognition,Barcode Reader,Smart Card,Biometric,Fingerprint,IC/ID Reader,etc.Waist High Barrier is widely used in Park,Hotel,Bus Station,Office,Cinema,Toilet,etc.Tripod Barrera RS 1018-3A with standard fire interface,arm can drop down for evacuationg even power is not cut off when fire alarm triggered.Tripod Turnstiles RS 1018-3A is anti-passback,when arm rotates 60 degree,people cannot reverse back.Three Rollers Barriers RS 1018-3A with hydraulic damper,low impact sound and high durability:the 3 arms can rotate in one or two directions,controlled by an access control system or push button at a reception desk.Tripod Barrieres RS 1018-3A is highly bright led direction indication lamp,indicate pass station instantly.
Parameter
| Product Name | Tripod Turnstile,Waist Height Turnstile |
| Model | RS 1018-3 |
| Brand | Bloccante |
| Housing material | 304 stainless steel |
| Dimensions(vertical) | 420*330*980mm |
| Dimensions(bridge) | 1200*300*980mm |
| Arm length | 550mm |
| Weight44 | 40Kg |
| Power | DC24V |
| Voltage | AC220V±10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 35 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30°C ~ 60°C |
| Operating humidity | ≤95% no condensation |
Function
1,Malfunction self-check and alarm reminder, ease of maitenance and use
2,Running method can be set through small buttons on the control panel
3,How arm reacts in emergency
4,How arm reacts when power on
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)

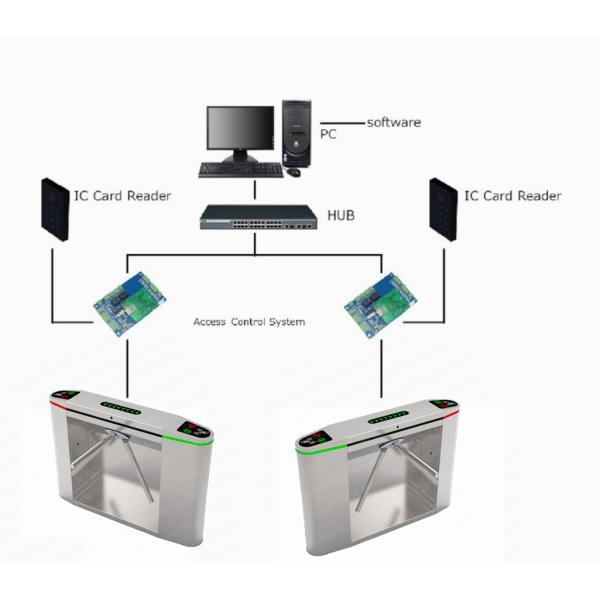

6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7,Unique positioning, self reset, one arm always in the horizontal level
8,LED lamp indicator
9,when open signal is given, arm rotate to a certain degree
10,how arm reacts when people passing
11,one direction or bi-direction flow control
12,work directly with PC for remote control and management
13,Bi-direction Anti reverse rotation
Feature
- Long-life performance, high operation dependability and fast response.
- The whole system runs smoothly, low noise, no mechanical impact.
- Single directional or Bi-directional is selectable.
- Automatic reset function: turnstile arm will lock automatically
- within 5s (can be setting) if passenger delay to entry.
- When power is off, arms will drop down automatically, which is complying with fire safety requirements.
- LED indicator (red × means no entry; green →means entry).
- Easy to install and maintain.
- 3-year warranty support.
|
|
